[RTL8722CSM] [RTL8722DM] Display Text On E-Paper

Materials

  • Ameba x 1

  • Waveshare 2.9inch e-Paper HAT (D) x 1

Example

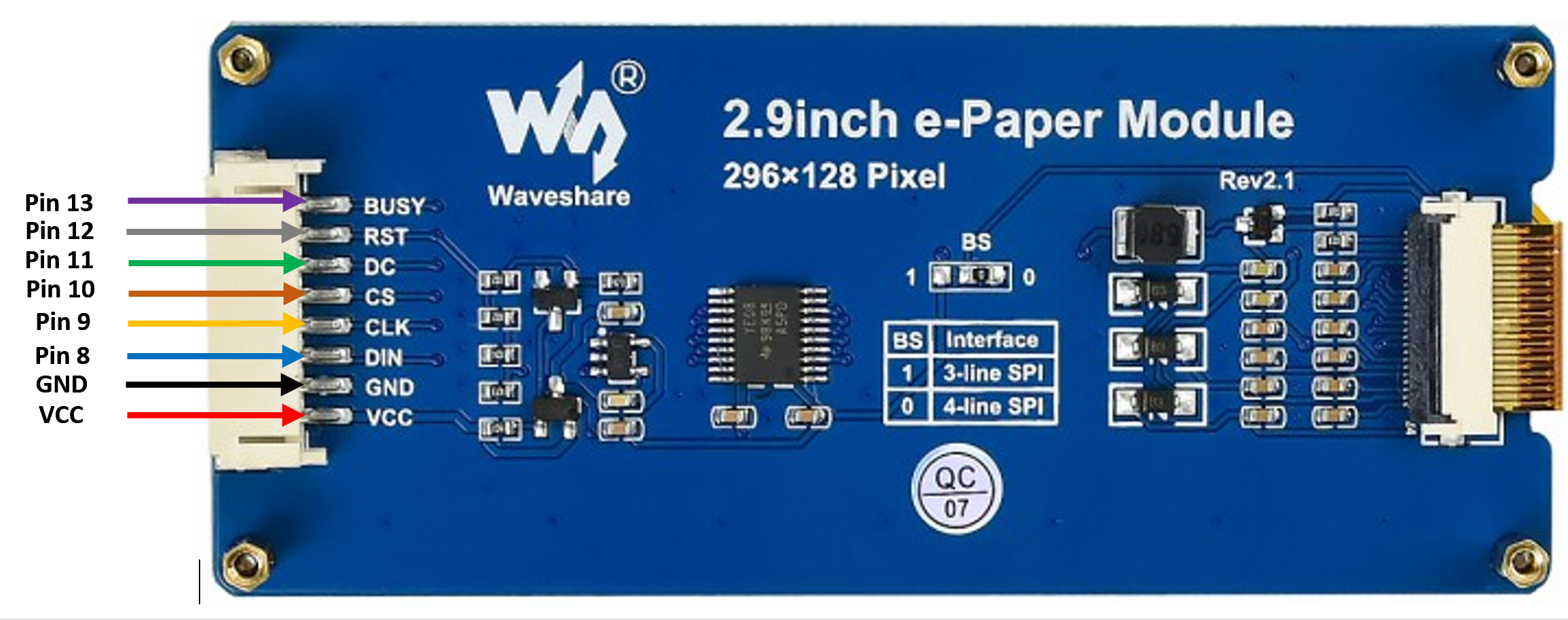

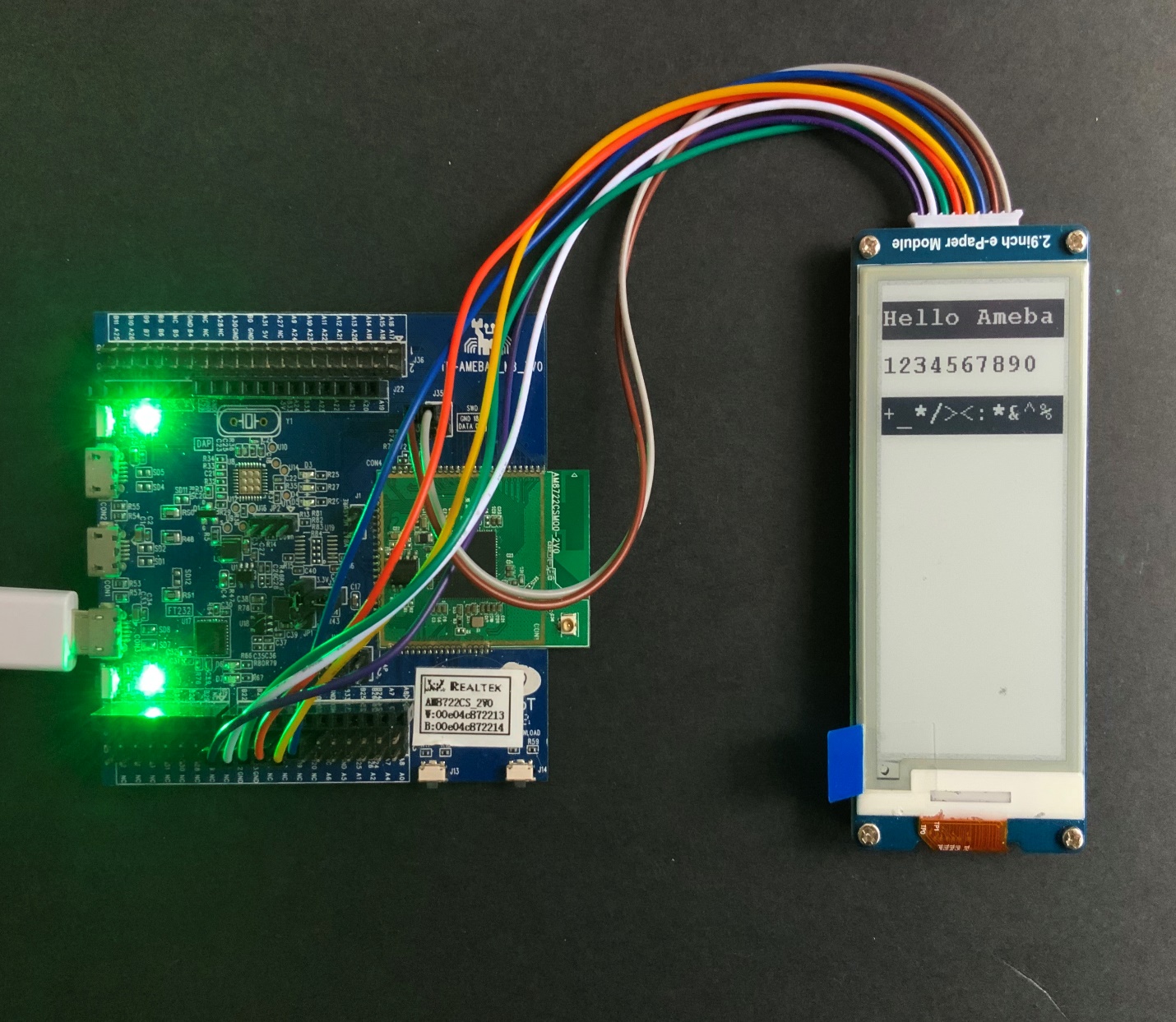

In this example, we use the Ameba RTL8722 module connects to a Waveshare 2.9inch e-Paper module to display a texts in alphanumeric. The display uses the flexible substrate as the base plate, with interface and a reference system design. The 2.9” active area contains 296×128 pixels and has 1-bit white/black full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, etc… are supplied with each panel. You may refer to the official 2.9inch e-Paper HAT (D) datasheet to know more about this module. Front view of the e-Paper Module:1RTL8722 wiring diagram:image1image2Firstly, you need to open the “DisplayText” example in “File” -> “Examples” -> “AmebaEink” -> “EinkDisplayText”:image3Upload the code to the board and press the Reset button after the uploading is done. You will find these texts displayed on the board:image4

Code Reference

[1] We use Good Display GDEH029A1 2.9 Inch / 296×128 Resolution / Partial Refresh Arduino Sample Code to get the e-Paper successfully Display: http://www.good-display.com/product/201.html
